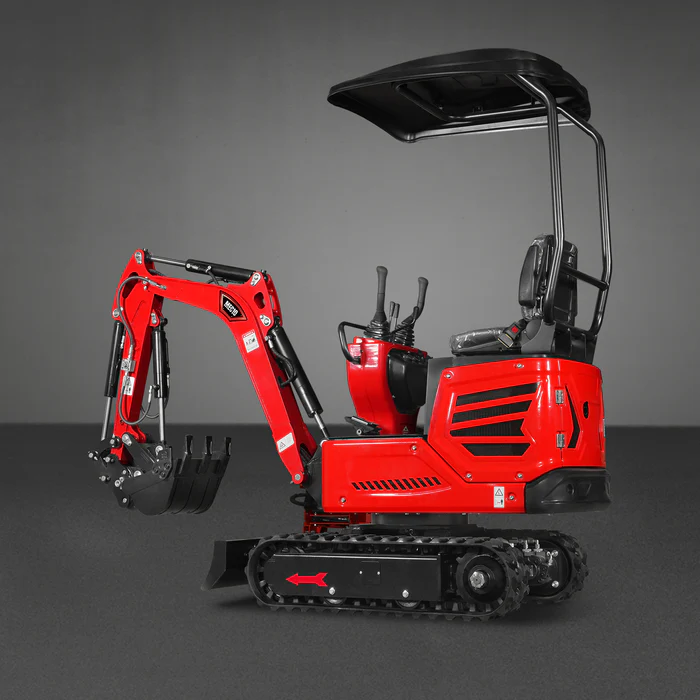

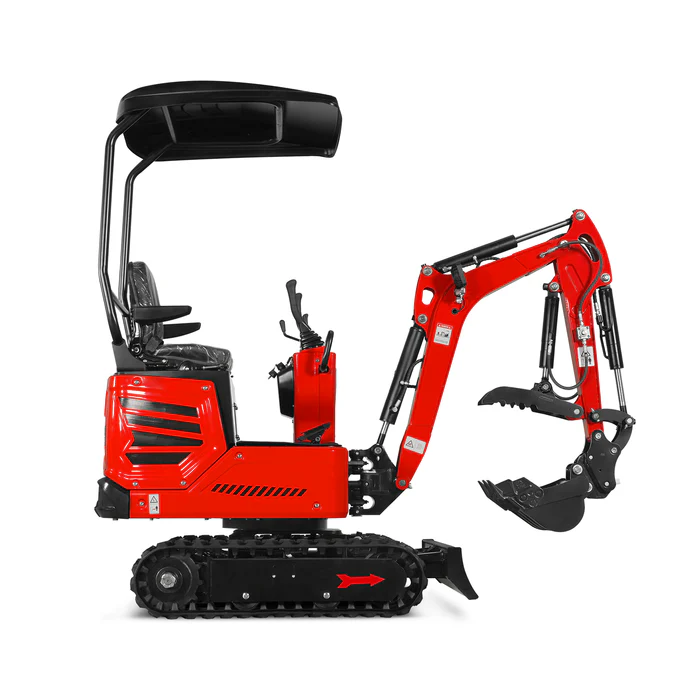

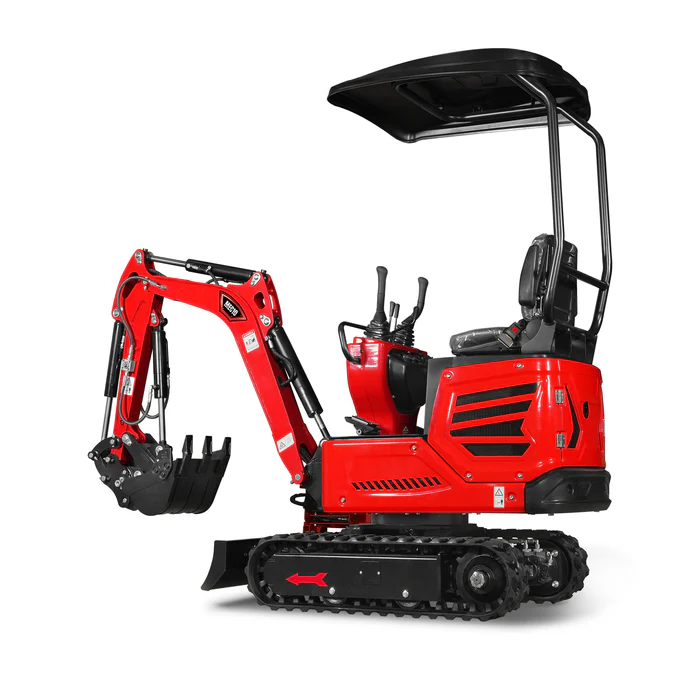

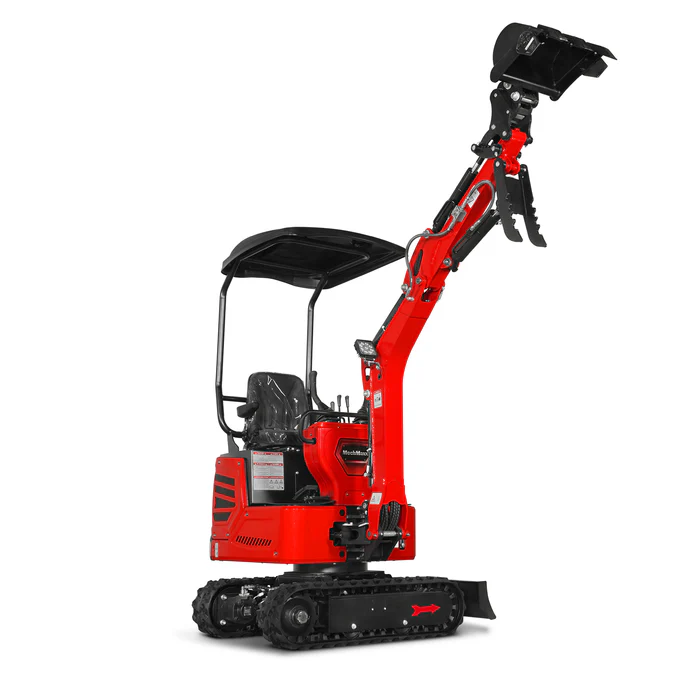

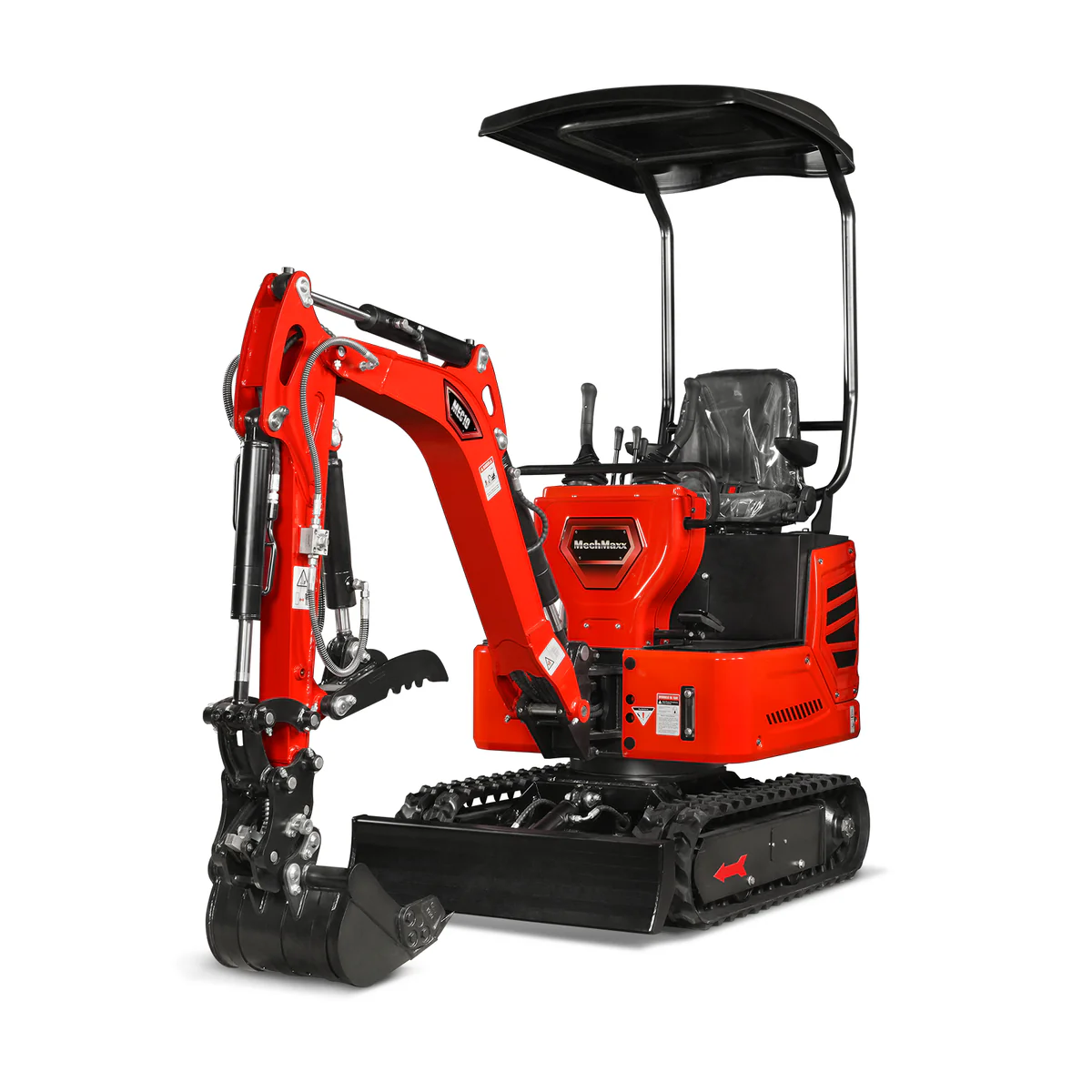

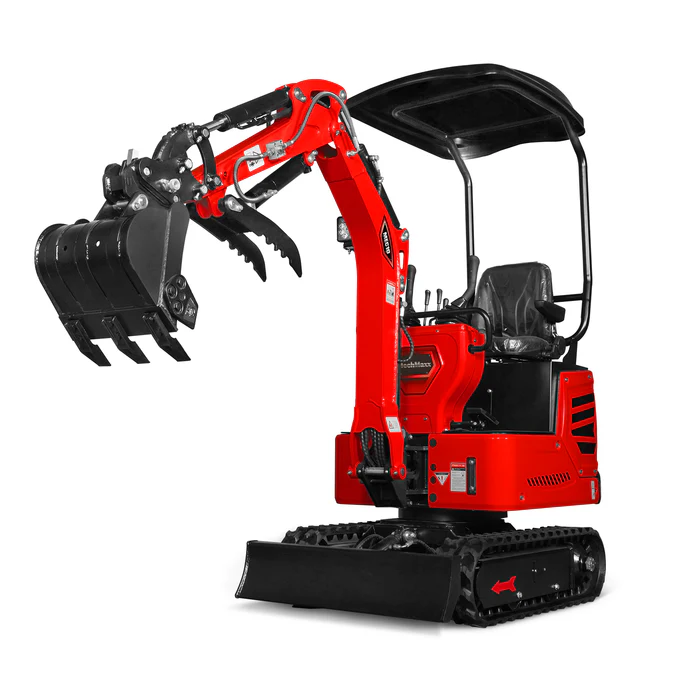

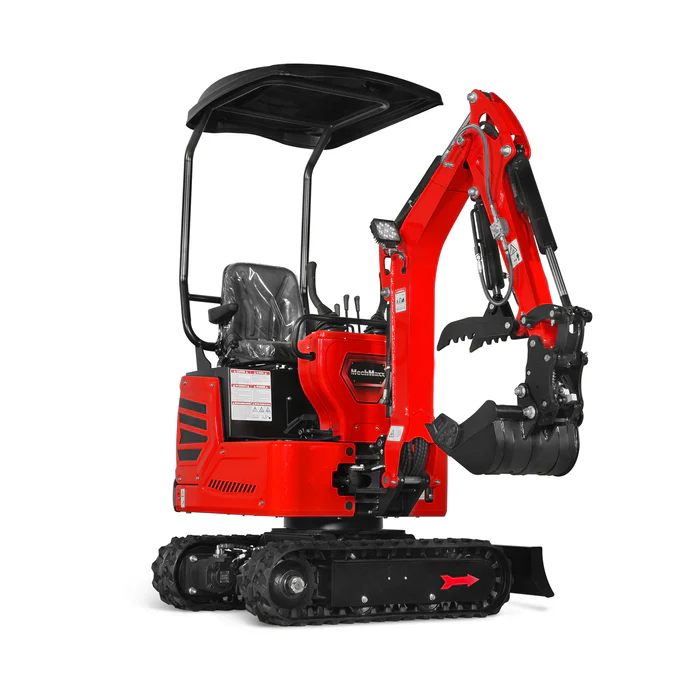

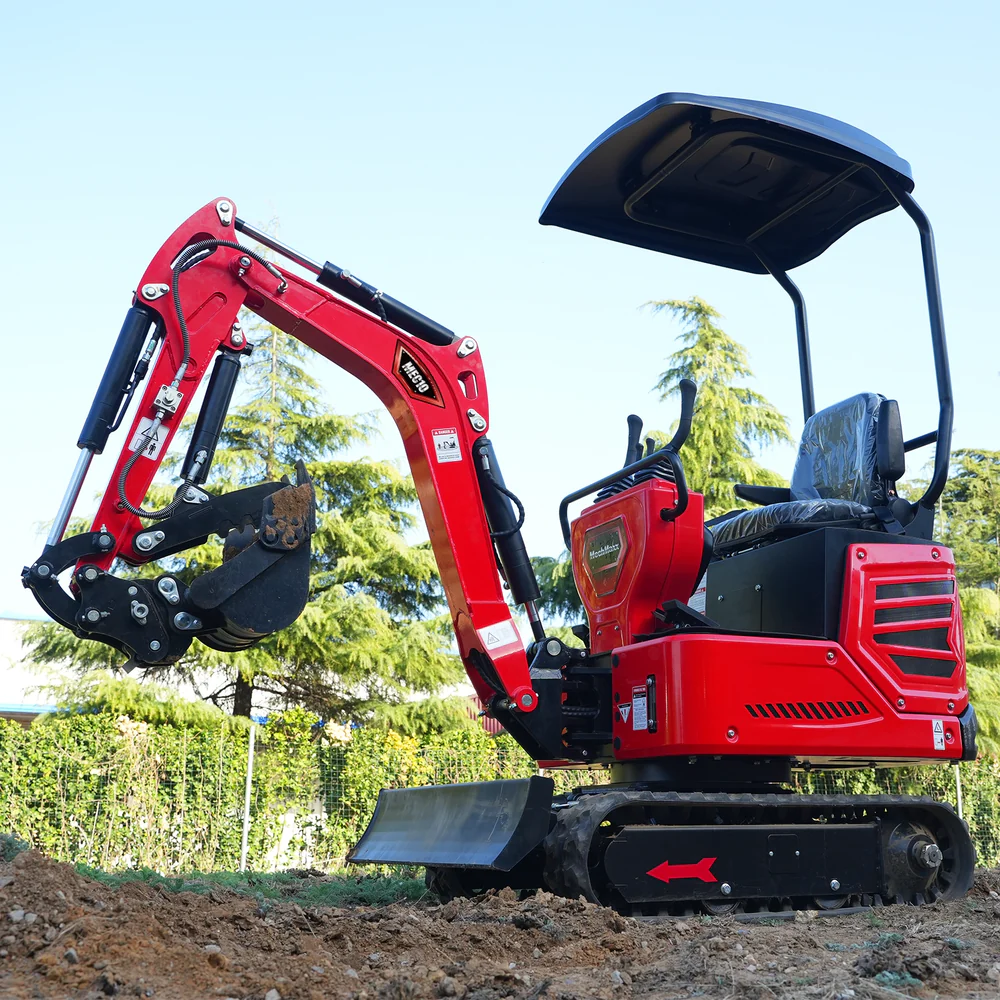

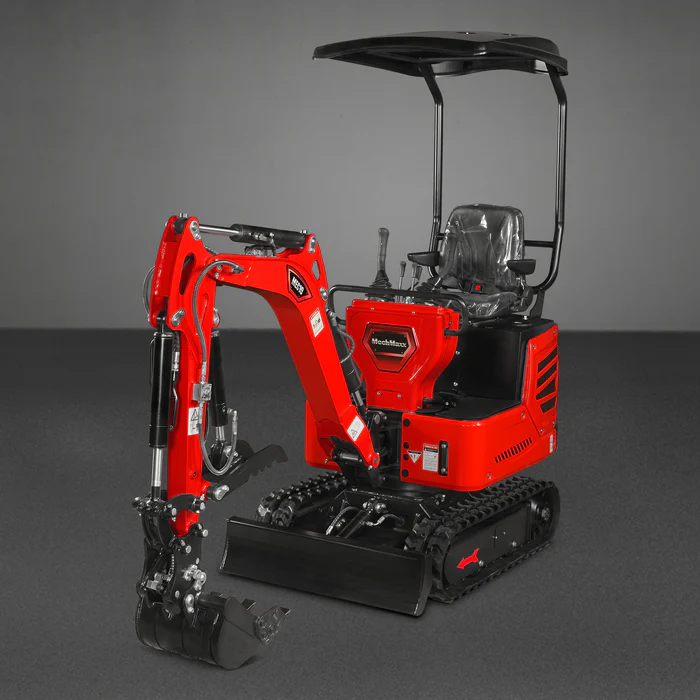

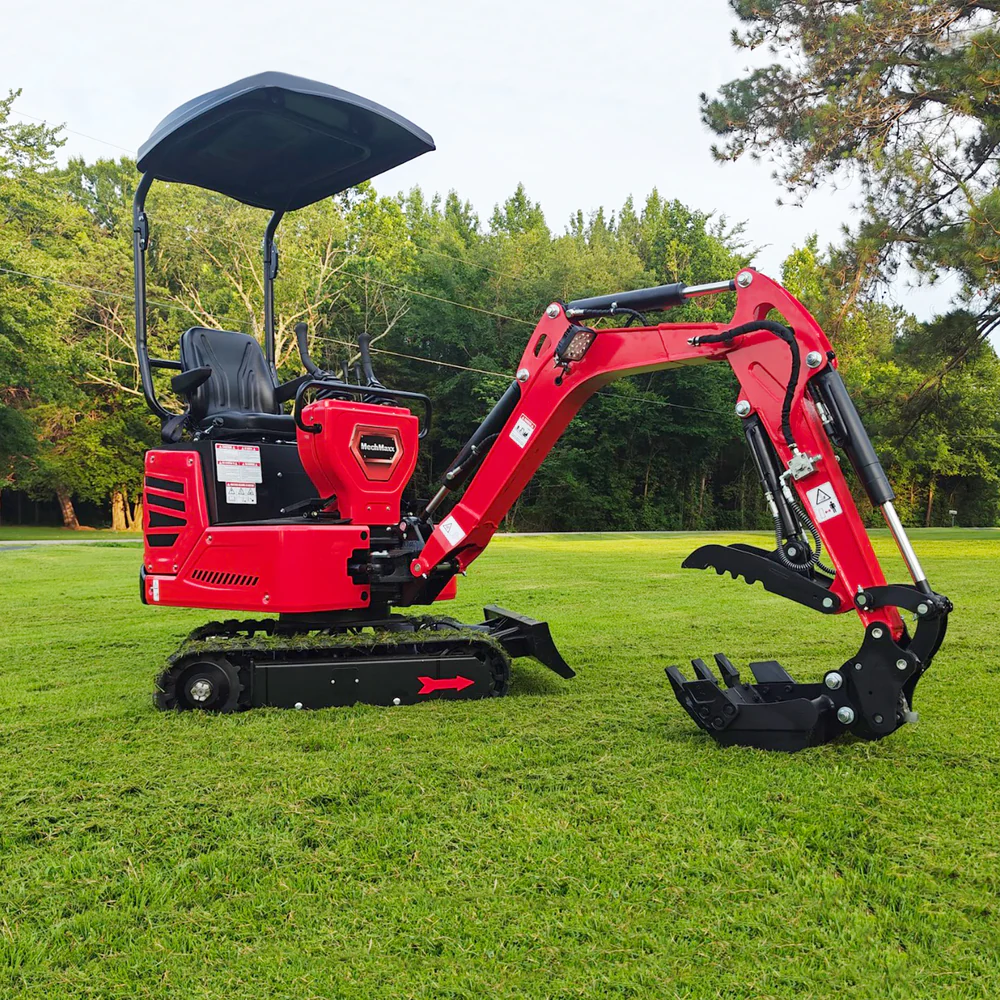

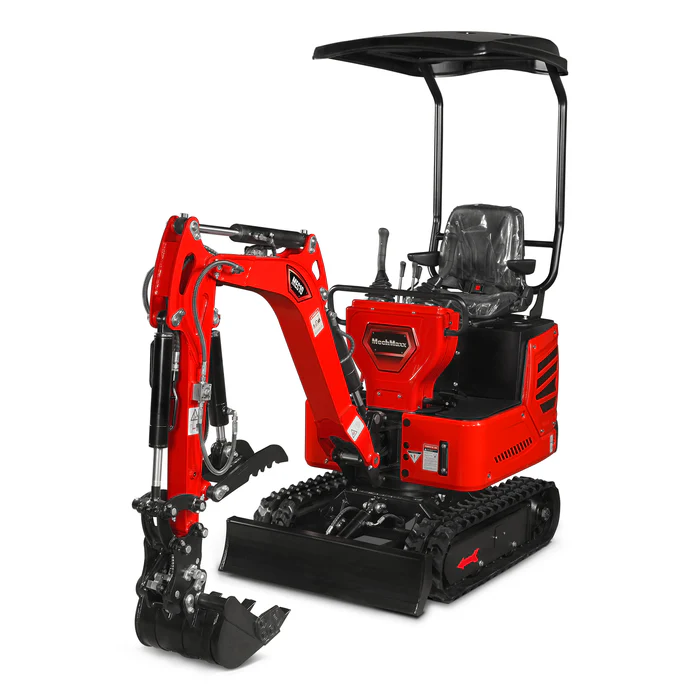

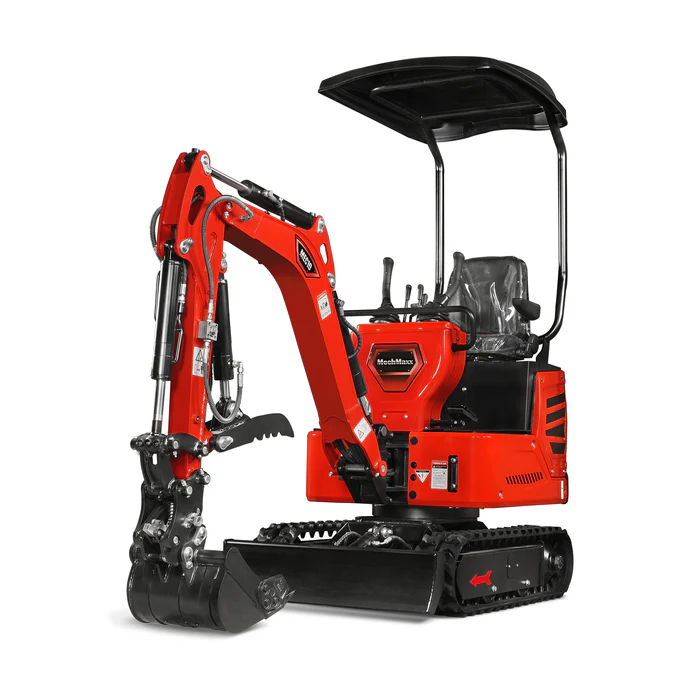

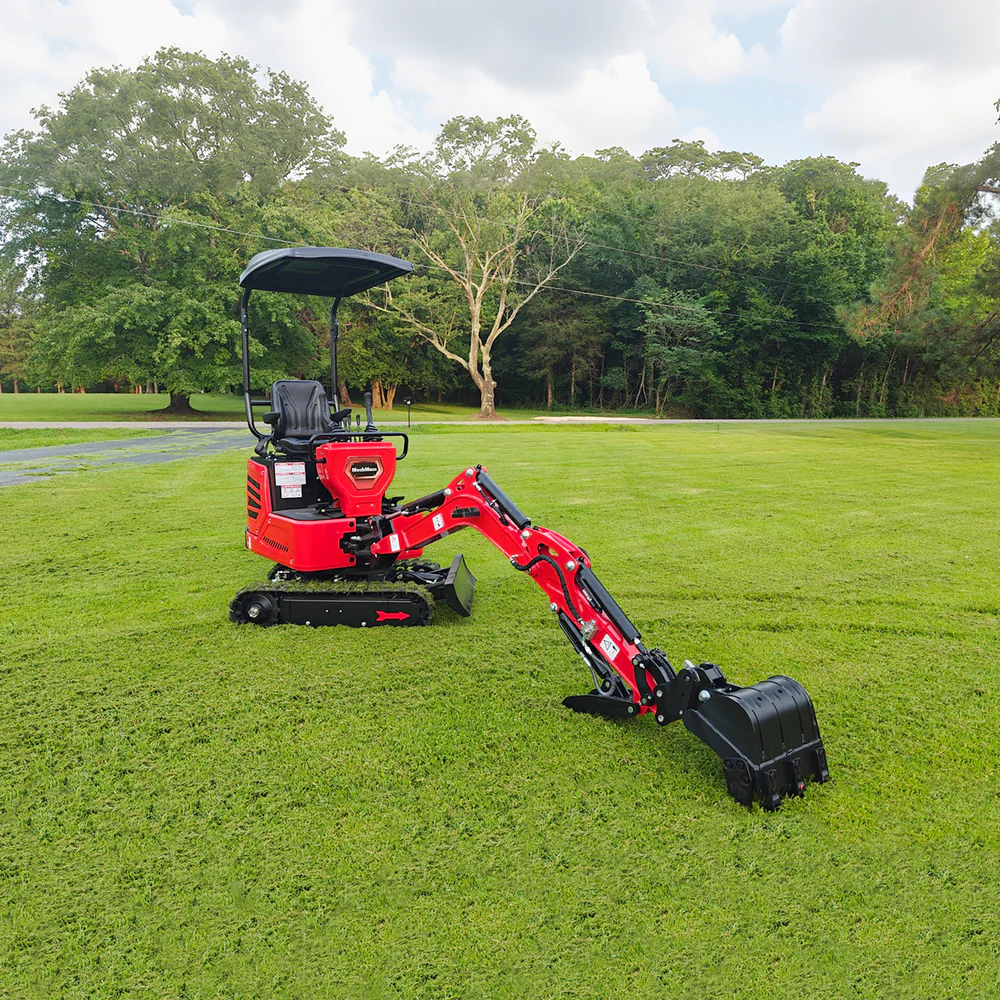

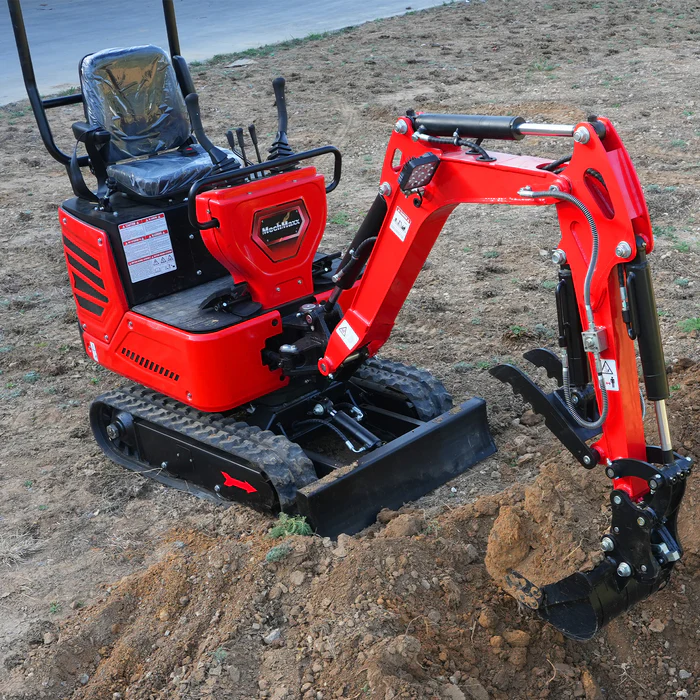

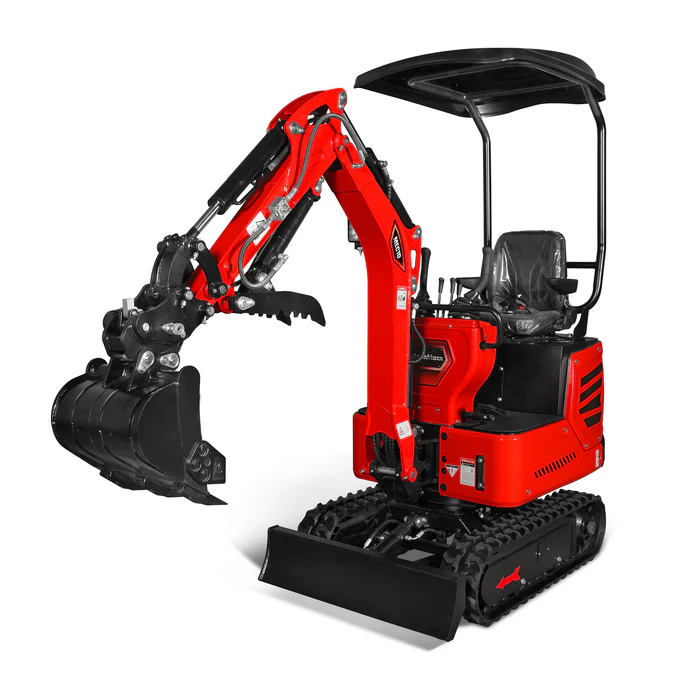

MEC10 is tailor-made for construction in narrow lanes, alleys, backyards, gardens, and other tight spaces.
Powered by Honda GX390 389cc 11.7HP air-cooled engine, high compression ratio for better fuel efficiency.
Our compact crawler excavators feature an enhanced hydraulic system that easily accommodates high-flow attachments like augers, rippers, and mulcher heads (not included), making quick work of concrete cutting and tree pulverizing.
65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

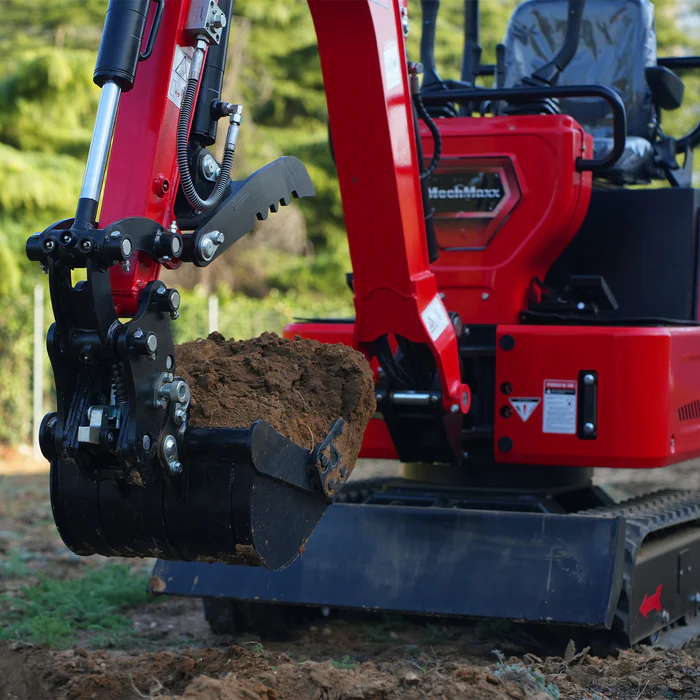

Hydraulic thumb included, convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.
Can rotate 360 degrees.

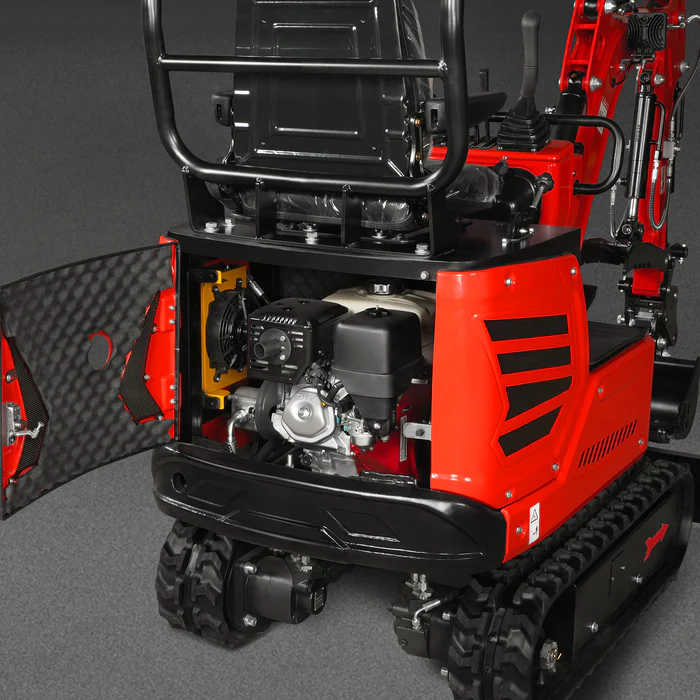

With the GX390, you’re looking at some of the best engines in the business. Powerful, reliable, durable, and quiet. Honda’s GX Series is power you can trust. Honda’s GX series engines are legendary for superior reliability and performance. Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

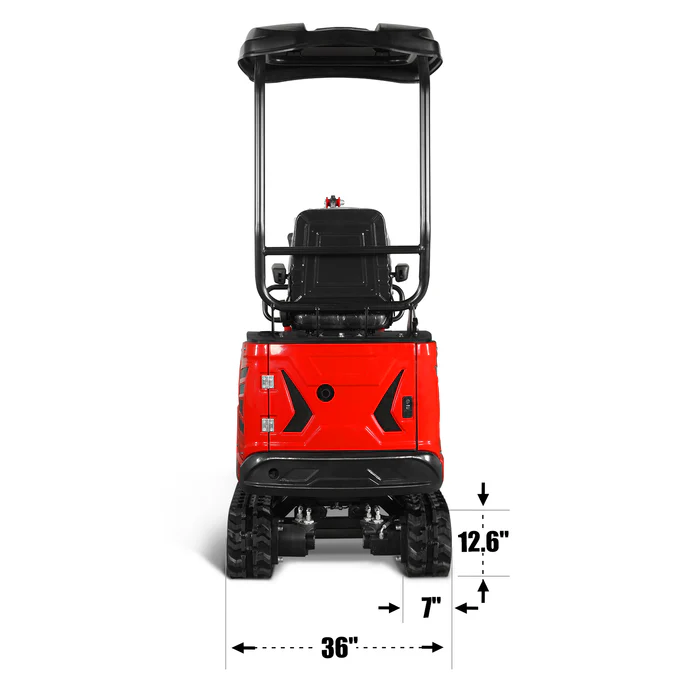

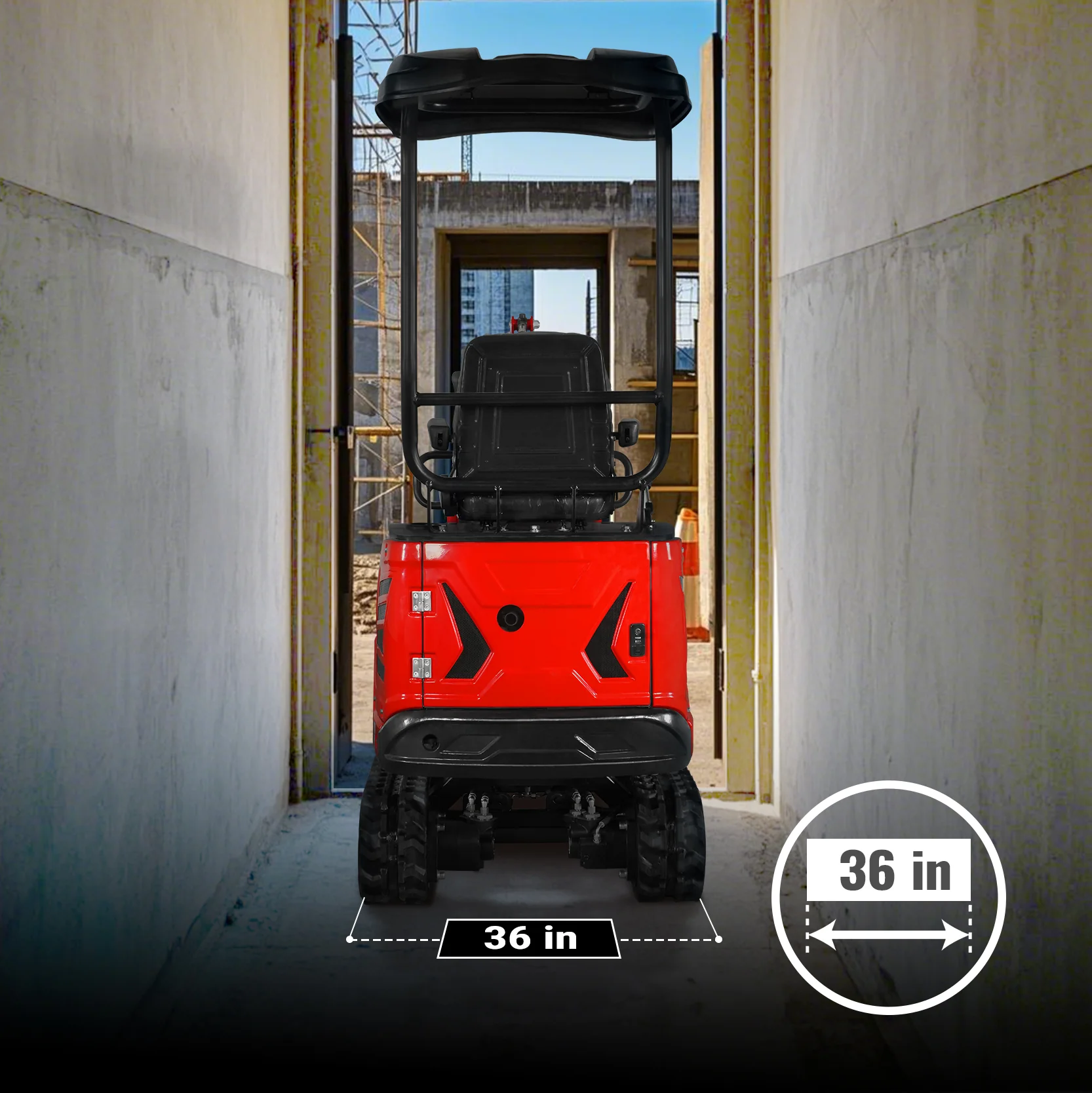

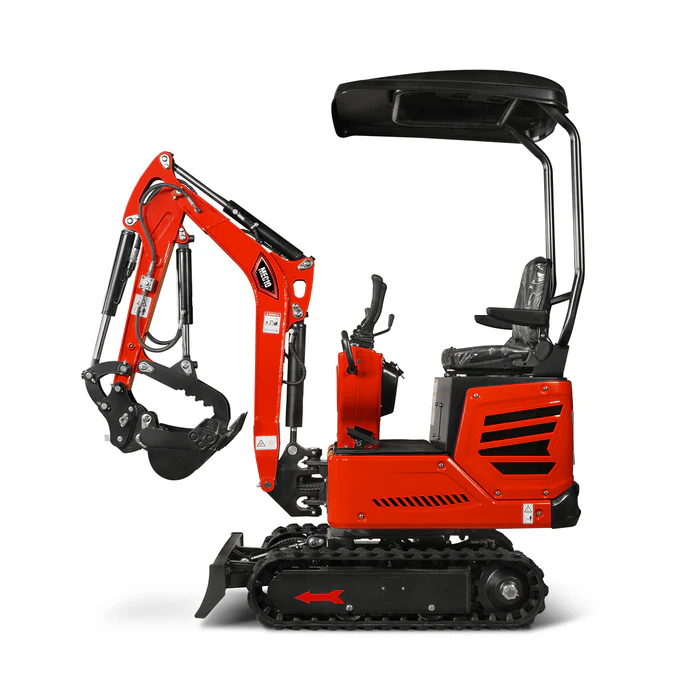

Chassis Width
At 36 in, its chassis width is much smaller than a standard excavator, making it ideal for working in backyards, narrow alleys, and other tight spaces.

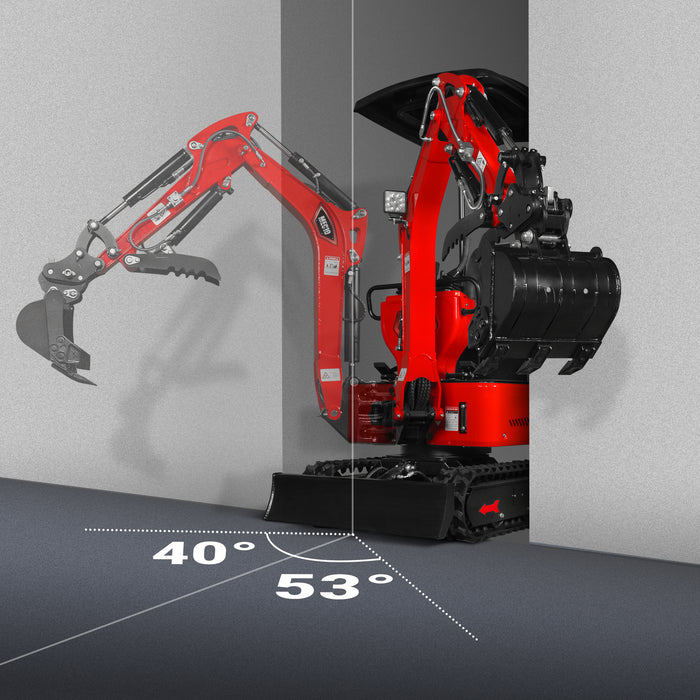

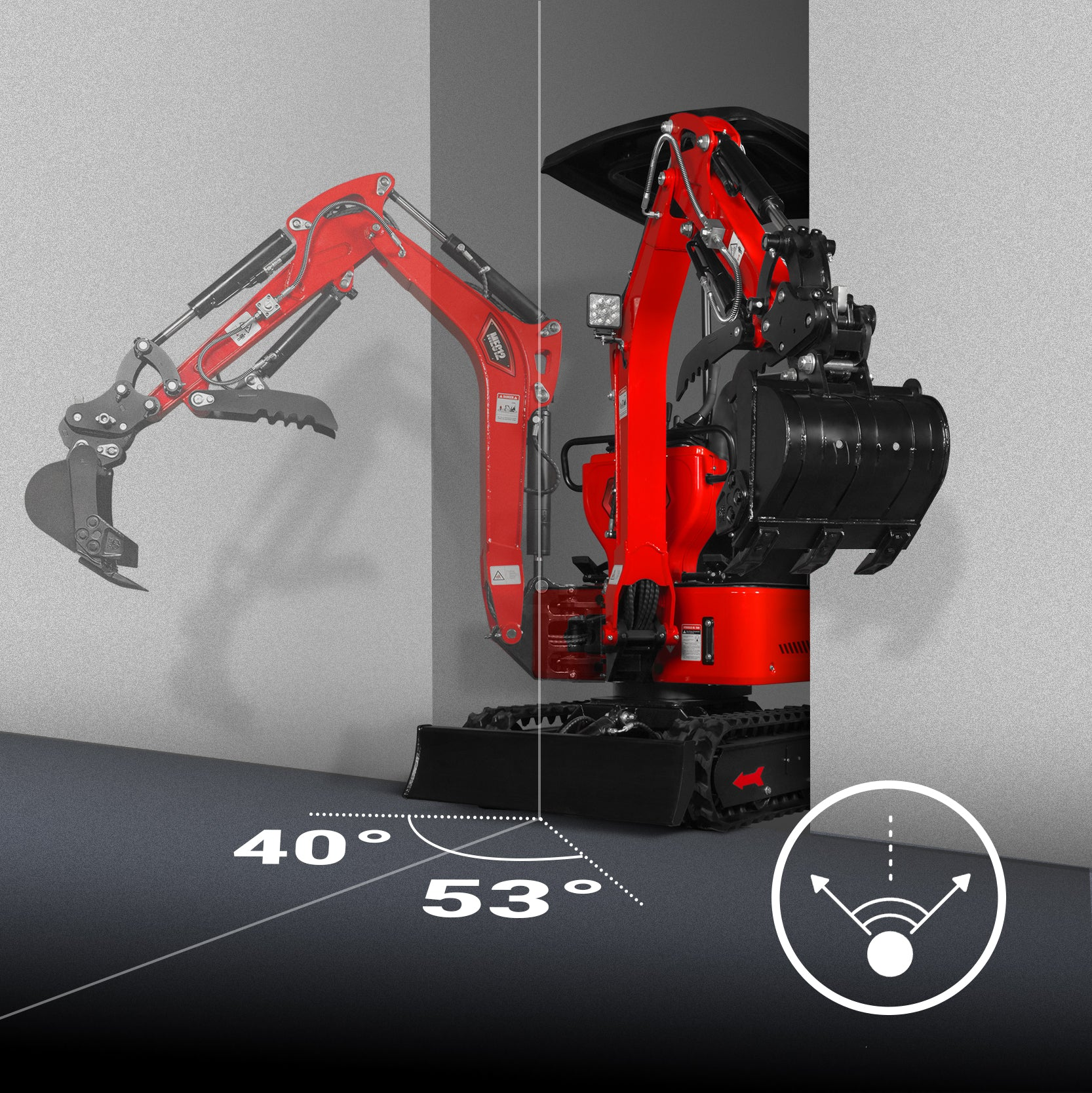

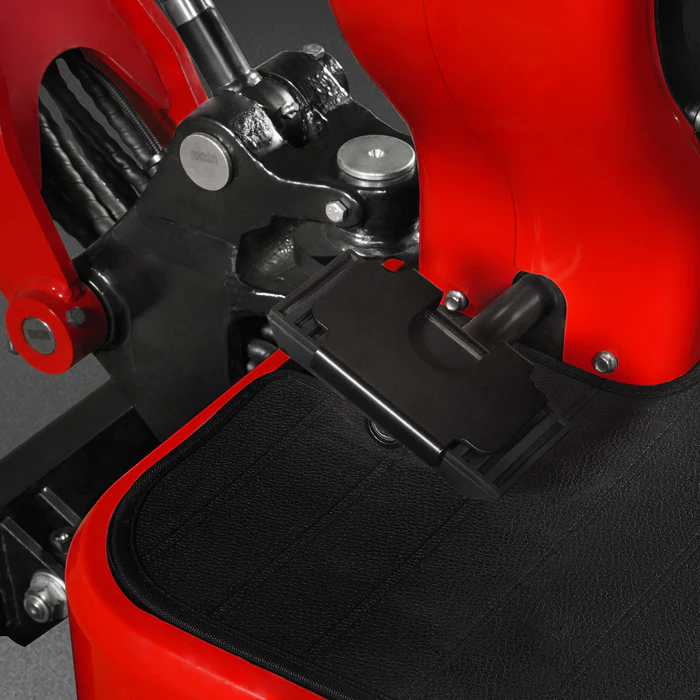

Swing Arc
The digging arm can swing left and right, turn 53 degrees to the left and 40 degrees to the right. This allows you to dig those narrow places and dump the soil where you want it.

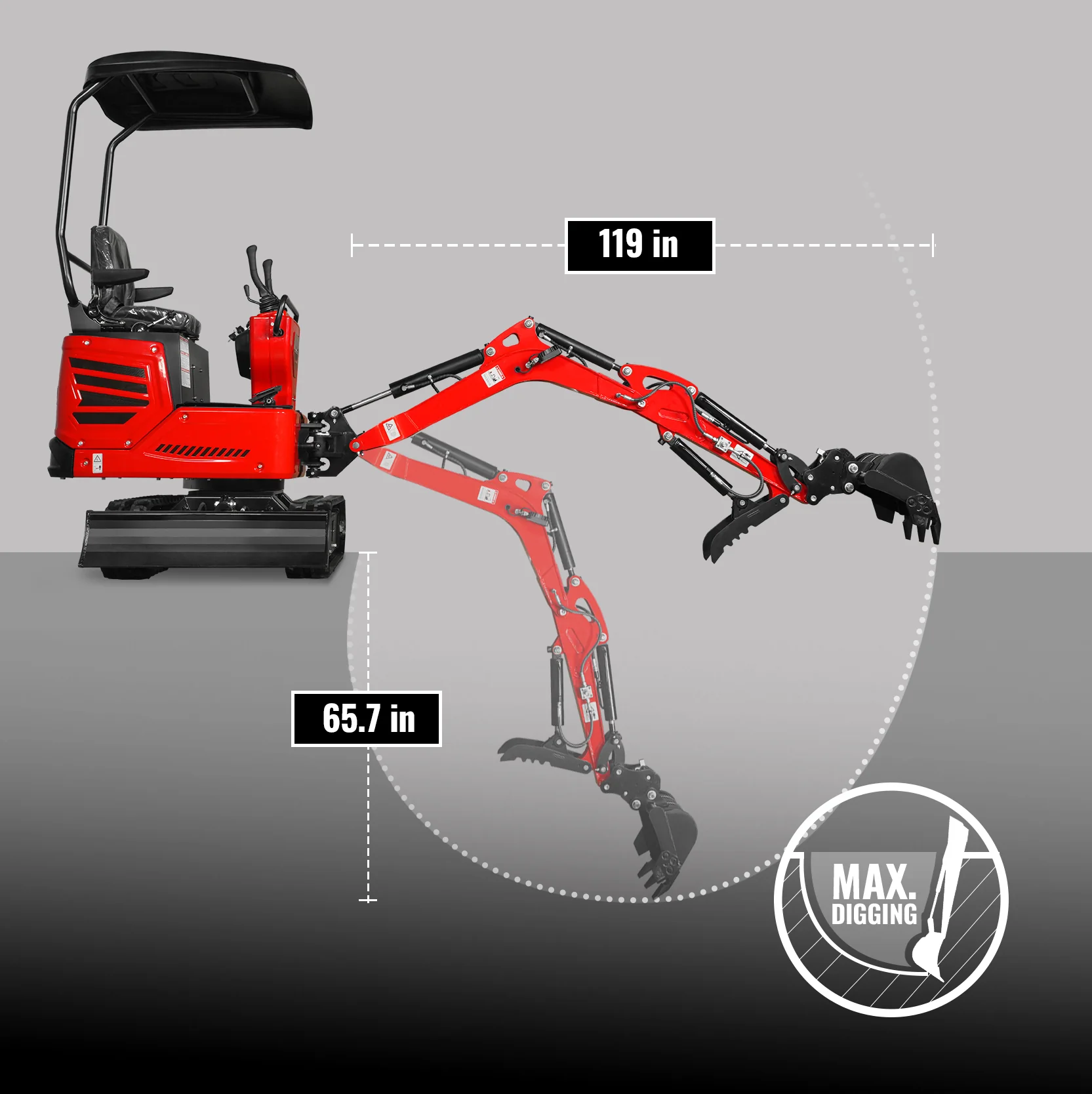

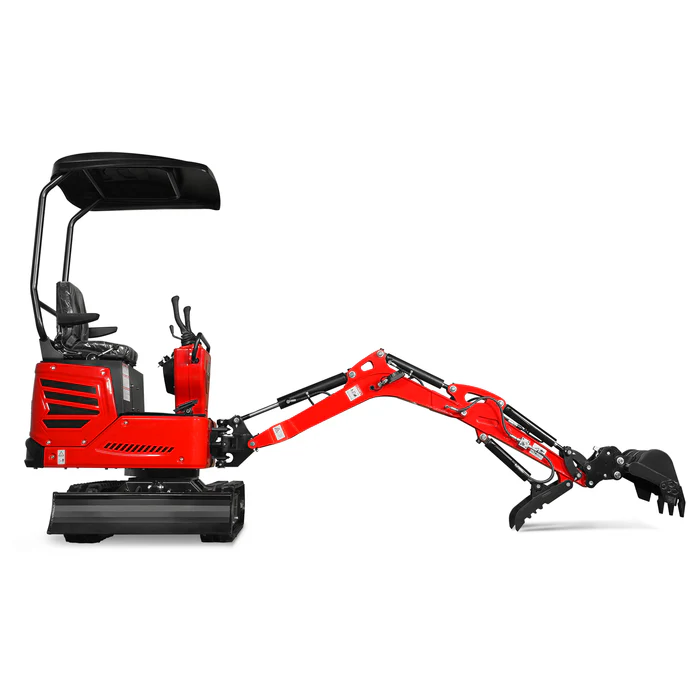

Digging Depth
It features an all-around 65.7-inch digging depth reach capability and a 119-in maximum ground digging radius, allowing access to hard-to-reach areas without the need to move the equipment.

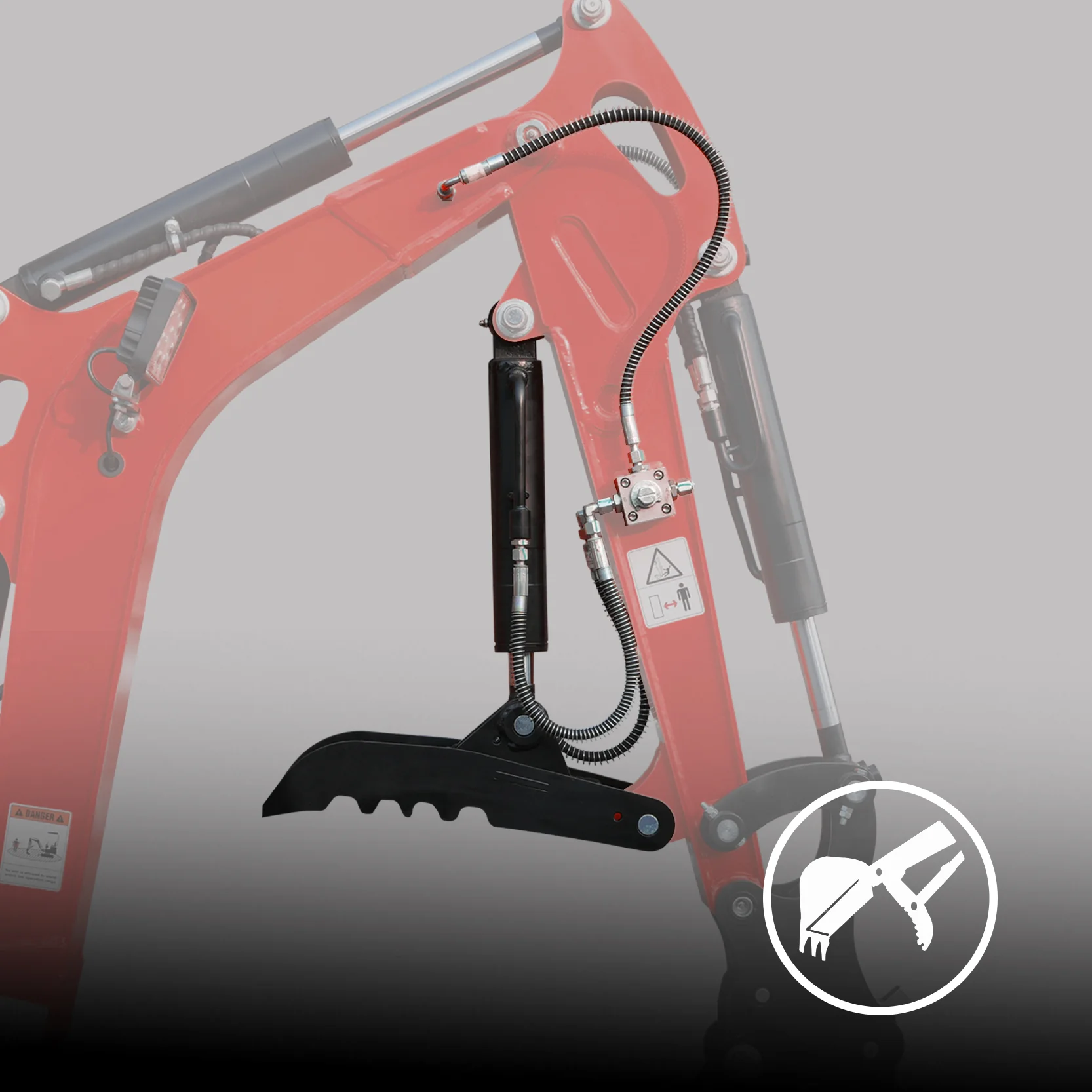

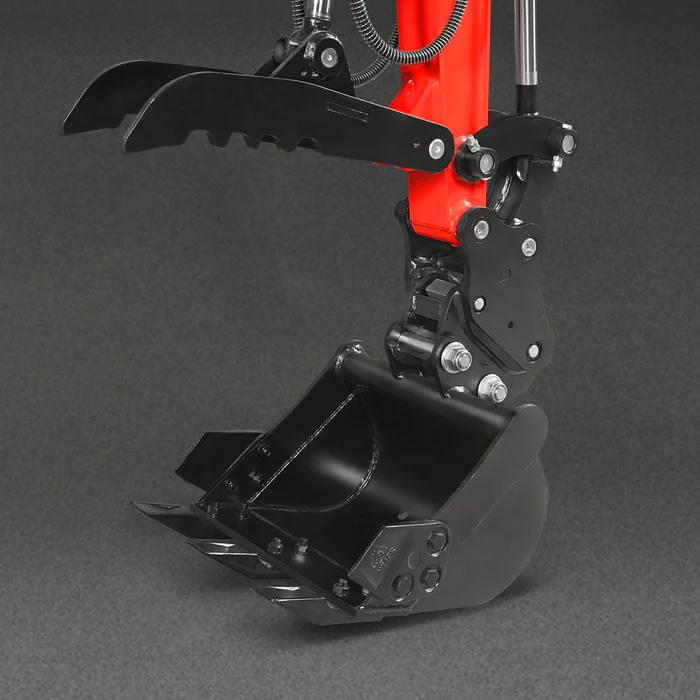

Hydraulic Thumb
The hydraulic thumb makes it very convenient to pick up rocks, branches and bushes, and the thumb position can be adjusted from the operator's seat for easier picking.

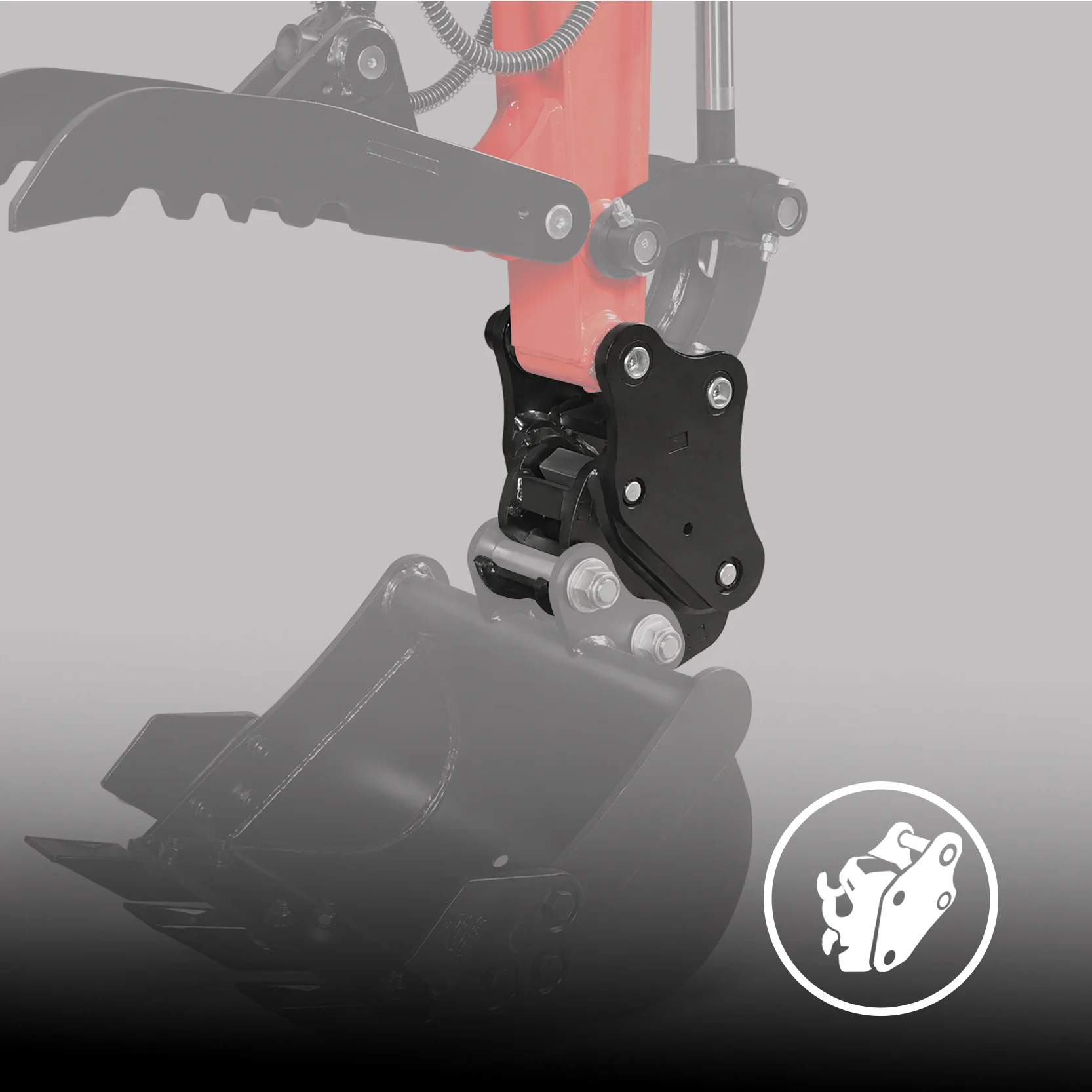

Semi-automatic Quick Hitch
The quick hitch is made of durable steel, allowing you to easily connect and detach the excavator to the attachment. It is a must-have equipment for any construction site.

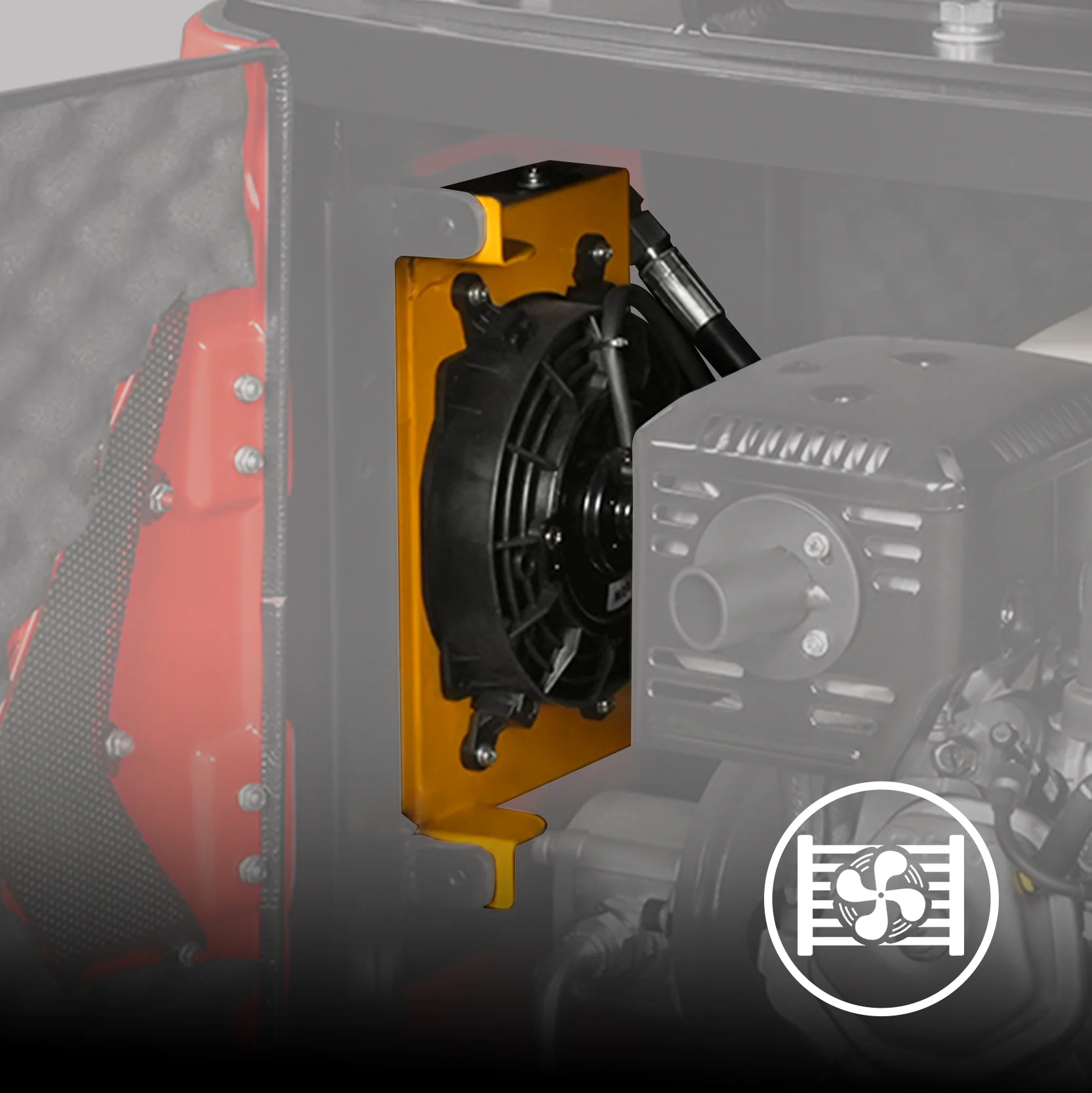

Hydraulic Oil Radiator
Hydraulic oil radiator can cool the hydraulic oil, preventing overheating and ensuring proper system operation. It works by dissipating heat from the oil as it circulates through the system, can prevent damage to components and ensure the system's efficiency and longevity.

Product Warranty
The Mini Compact Excavator (SKU:150530) stands up to extreme testing and come with a ten-year warranty for machine,a ten-year warranty for engine.

Specifications
Standard Bucket Capacity    0.7 cu-ft    Auxiliary Std Flow    5.7 gal/min
Standard Bucket Width    15 in    Max. Tractive Force    3035 lbf
Max. Travel Speed    0.75 mile/h    Arm Digging Force     1191 lbf
Slewing Speed    11 rpm    Bucket Digging Force     1619 lbf
Max. Gradeability    30°    Rated Lift Capacity    728 lb
Track Ground Pressure    5.1 psi    Lift Radius    80 in
Hydraulic Oil Tank Capacity    3.96 gal    Operating Weight    2280 lb

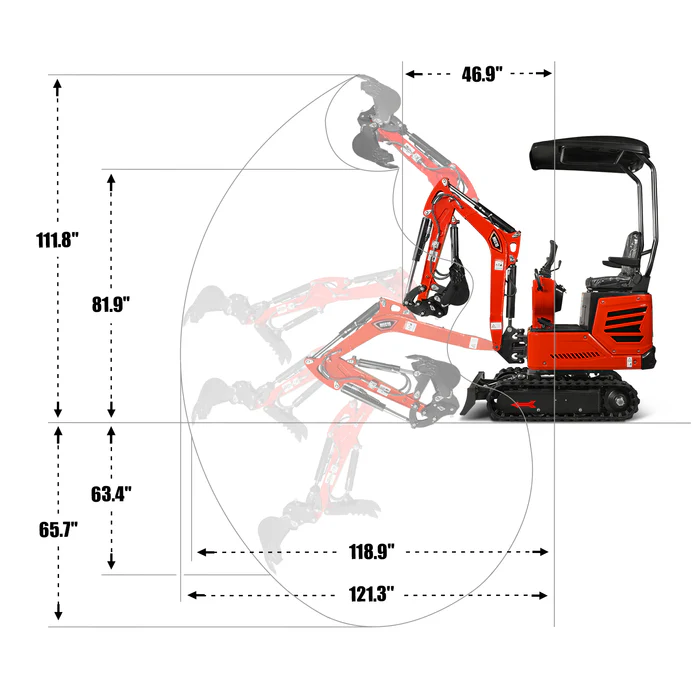

Operating Range
Max.Digging Radius On Ground     119 in    Max. Vertical Digging Depth    63.3 in
Max. Digging Depth    65.7 in    Min. Turning Radius    46.8 in
Overall Operating Height (Fully Raised)    111.8 in    Max. Lifting Height Dozer Blade    5.9 in
Max. Digging Radius    121 in    Max. Depth Dozer Blade    7.4 in
Max. Unloading Height    81.8 in

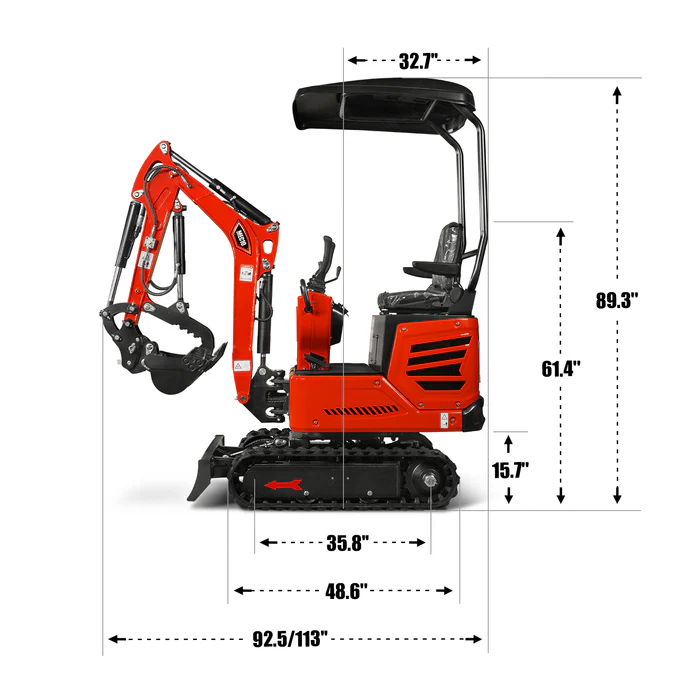

Main Dimensions
Wheel Track    35.8 in    Track Height    12.6 in
Track Length    48.6 in    Transportation Length    92.5/113 in
Upper Chassis Ground Clearance    15.7 in    Height Of Seat To Ground    61.4 in
Counterweight Turning Radius    32.6 in    Overall Height    89.3 in
Chassis Width    36 in    Boom Swing-Right    40°
Track Width    7 in    Boom Swing-Left    53°
Engine
Model    Honda GX390    Max. Net Torque    26.5 N.m/2500 RPM
Displacement    389 cc; 11.7 HP    Fuel Tank Capacity    1.6 gal
Engine Type    4-stroke, overhead valve, single cylinder    Engine Oil Capacity    0.3 gal
Start Type    Electric start     Engine Oil Type    10W-30
Rated Power     8.7 KW/3600 RPM    Warranty    1 Year

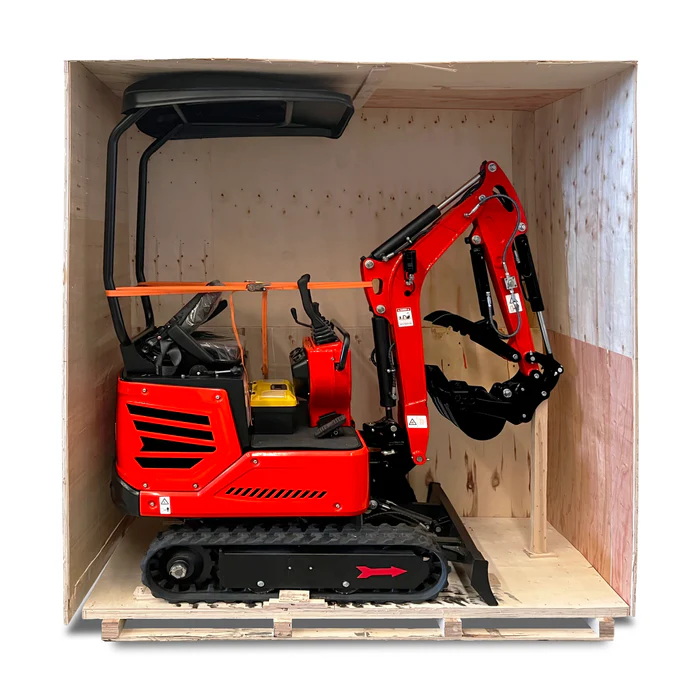

Package
Package Method    Plywood Case     Weight (N.W./G.W.)    2100/2376 lb
Dimensions    91x40x98 in

WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s)  for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
